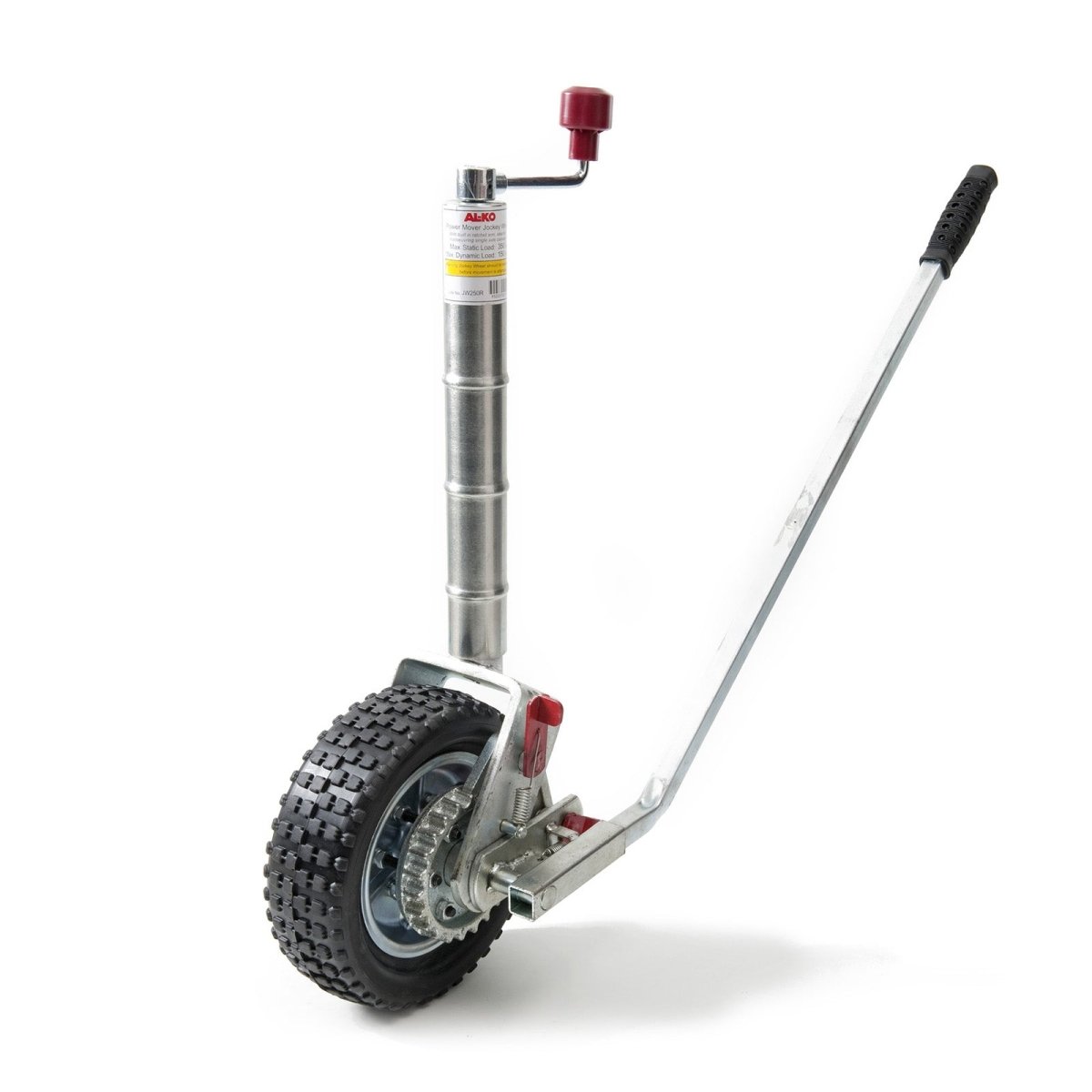

Jockey Wheel - Power Mover - 10" Solid Tyre - With Weld On Or Bolt On Clamp
Part Number: 621250
The AL-KO Power Mover is the easy and convenient way to move any caravan or trailer without back breaking effort. The ratchet drive mechanisim of the AL-KO Power Mover is strong enough to move your caravan or trailer even up small inclines when ball load does not exceed 150kg.
Jockey Wheel - Power Mover - 10" Solid Tyre - With Weld On Or Bolt On Clamp
Specifications:
- Surface finish: Zinc Plated
- Static Capacity (when van or trailer is stationairy): 350kg
- Dynamic Capacity (when ratchet mechanisim is used inline with operating instructions): 150kg
- Outer Tube Dia.: 48mm
- Weight: 14.70g
- Wheel Dia.: 245mm
- Mount holes per side: 1
- Mounting Hole Dia.: 13mm
- Hole spacing: 150mm

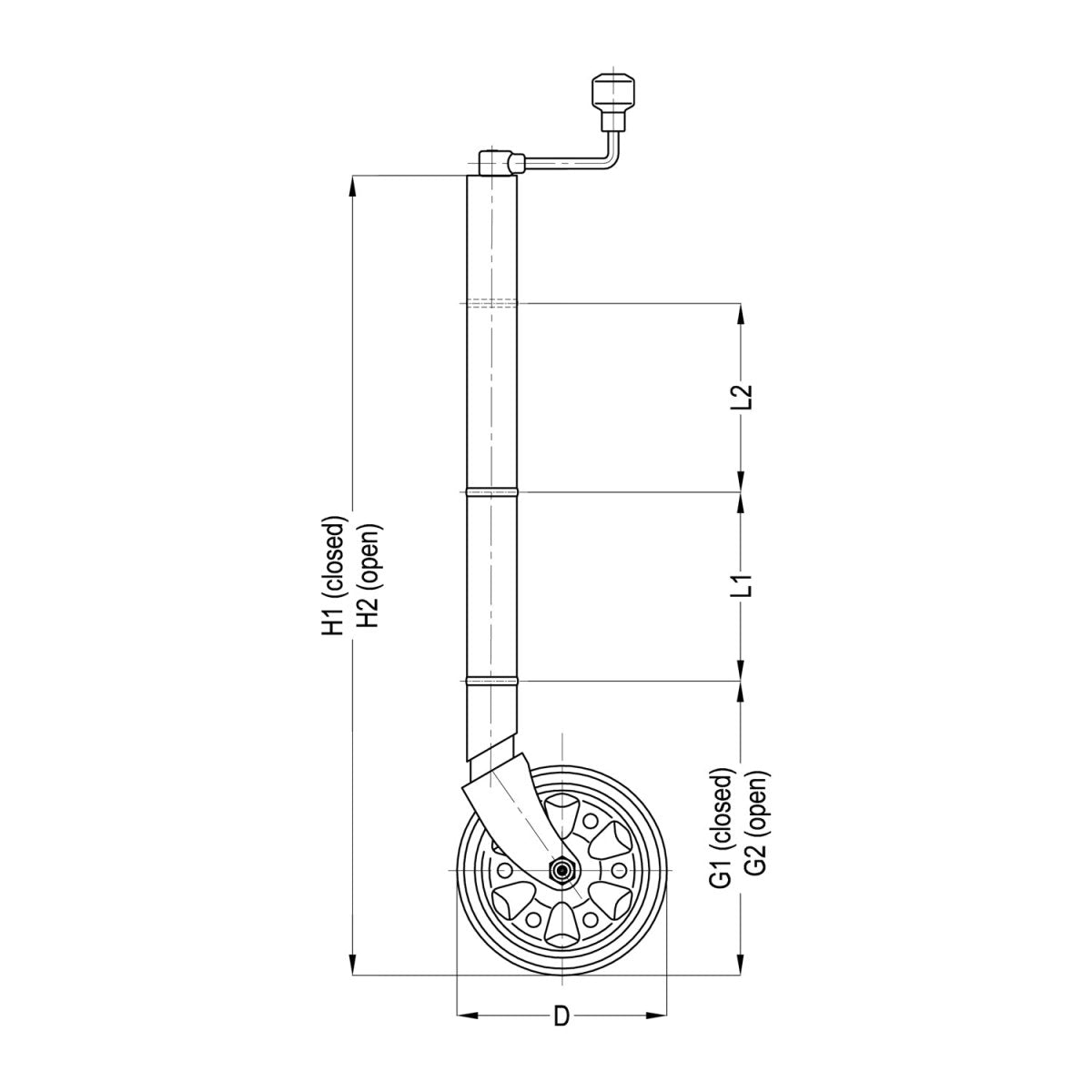

- Height Closed (H1):625mm
- Height Open (H2):875mm
- Bottom of wheel to bottom rib center when closed (G1): 335mm
- Bottom of wheel to bottob rib center when closed (G2): 585mm
Jockey Wheel - Power Mover - 10" Solid Tyre - With Weld On Or Bolt On Clamp
Caution!
The AL-KO Power Mover is designed to aid movemment of the caravan or trailer in either forward of backward direction. It can be used to move up a slight gradient and the double pawl system will resist roll back, but the power move must not be relied upon as a park brake. Particular care must be taken if the incline changes to a decline as the Power Mover will ”free wheel” after the peak of the incline has been reached. Use the caravan or trailer park brake to control and tendency to ”free wheel”.
Operating Instructions
For correct and safe use please follow the operating instructions below:
- Engage caravan/trailer park brake or chock wheels on the downhill side.
- Secure the AL-KO Power Mover to your caravan/trailer drawbar.
- Lower the powermover to the painted line on the telescopic tube.
- Select directional settings on the two pawls
- Fit or engage the powermover traction handle.
- Carefully release the caravan/trailer park brake.
- Raise and lower the traction handle for controlled easy movement.
Choosing the direction settings
The AL-KO Power Mover is equipped with two directional pawls.
With the Power Mover securely fixed to the trailer or caravan drawbar, move both of the spring loaded pawls in the direction you wish the trailer to move. This should be done before and effort is applied to the traction handle.
Ensure the Power Mover is lowered to the painted ring around the fork of the unit as under dynamic loads exceeding 150kg and extended height, damage may occur to the telescopic tube of t
